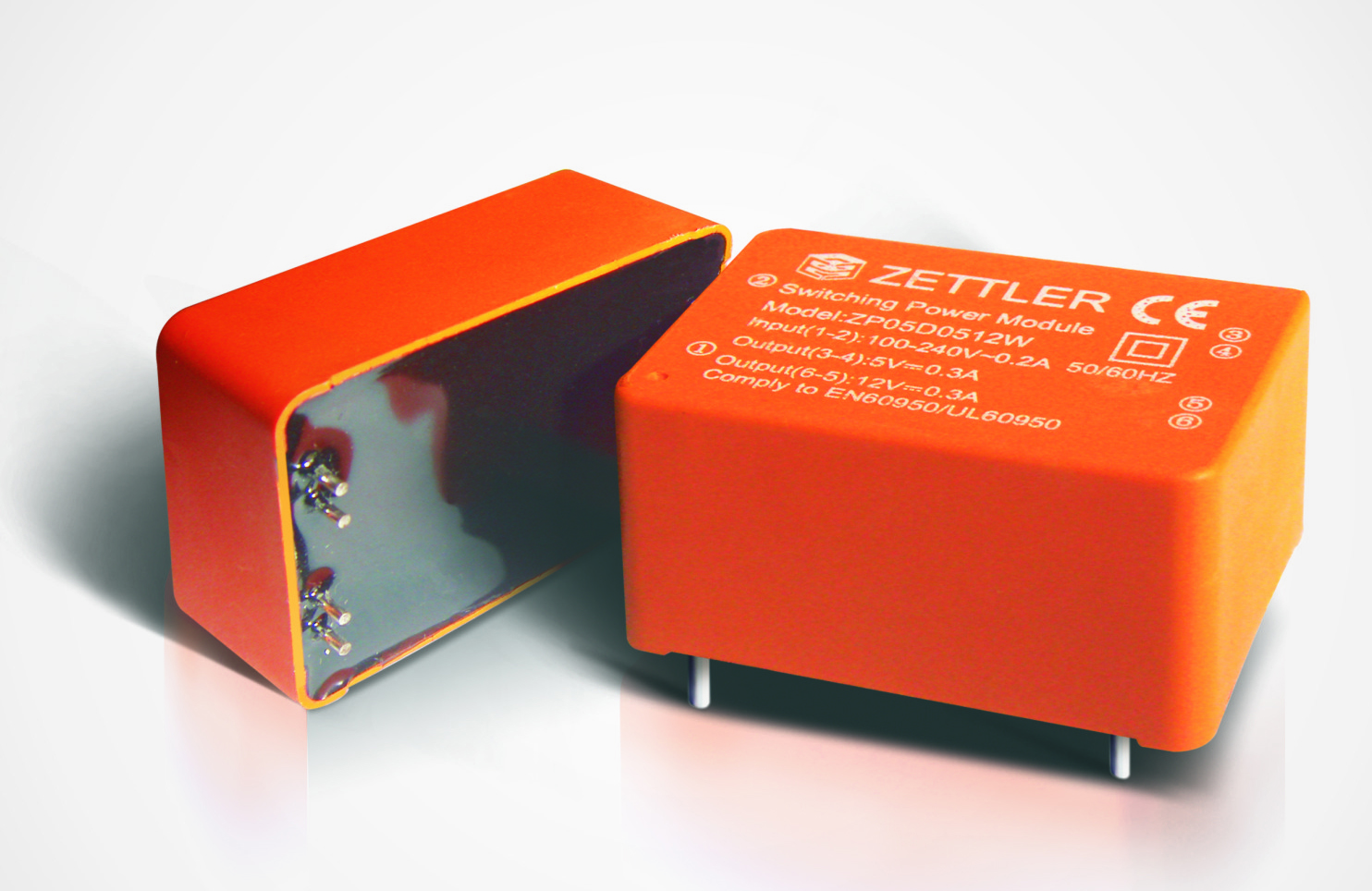

A series of cost effective and reliable AC-DC power modules with a wide universal input range in a compact, plug & play package. Ideal for a variety of smart energy solutions such as low power lighting, audio or thermostat controls and other home electronics applications, as well as industrial controls.
For installation instructions, please directly contact our sales for information.
Key Benefits
Easy Plug & Play solution for low power applications
Long life: MTBF >1 million hours*
Compact encapsulated design
High Efficiency
Customizable
Key Features
Universal Input Range 85VAC-305VAC*
Wide ambient temperature capability -25℃ to +85℃*, full power output w/o derating
Low standby power consumption <0.1W
Protection Capability: OVP, OSP, OCP, OPP.
Compliance with UL/IEC standards
EMC compatible
| Series | Outline Dimension(LxWxH) | Certificates | CE | Datasheet |
|---|---|---|---|---|
| 1 Watt High Performance Series with Zero Crossing | 33.7x22.2x15.0mm | TUV / UL | Available | HP01SXX00WI-X |
| 1 Watt High Performance Series | 33.7x22.2x15.0mm | TUV / UL | Available | HP01SXX00WI |
| 2 Watt High Performance Series | 33.7x22.2x15.0mm | TUV / UL | Available | HP02SXX00WI |
| 3 Watt High Performance Series | 37.0x24.0x15.0mm | TUV /UL | Available | HP03SXX00WJ |
| 10 Watt Wide Input Voltage Series | 55.2x35.2x25.5mm | TUV/UL/CB | Available | HPI10SXX00ED |
| Series | Outline Dimension(LxWxH) | Certificates | CE | Datasheet |
|---|---|---|---|---|
| 3 Watt Mini Series Single Output | 25.0x25.0x16.0mm | TUV/UL/CB | Available | ZPI03SXX00WC |
| 3 Watt Series Single Output without Fuse | 23.9x23.0x18.0mm | TUV /UL | Available | ZP03SXX00WE |
| 5 Watt Single Output Precision Series | 32.1x27.1x19.3mm | TUV /UL | Available | ZP05SXX00WB |
| 10 Watt Series Single Output | 55.2x35.2x25.5mm | TUV/CB | Available | ZP10SXX00W |
| 15 Watt Series Single Output | 52.4x27.2x24.0mm | TUV/UL/CB | Available | ZPL15SXX00WL |
| 15 Watt Series Single Output | 52.4x27.2x31.0mm | TUV/UL/CB | Available | ZPL15SXX00WS |
| 20 Watt Series Single Output | 52.4x27.2x24.0mm | TUV/UL/CB | Available | ZPL20SXX00WL |
| 20 Watt Series Single Output | 52.4x27.2x31.0mm | TUV/UL/CB | Available | ZPL20SXX00WS |
| 30 Watt Series Single Output | 69.4x39.0x24.0mm | TUV | Available | ZPI30SXX00WN |
| Series | Outline Dimension(LxWxH) | Certificates | CE | Datasheet |
|---|---|---|---|---|
| 15 Watt Series Single Output(For EV charger) | 52.4x27.2x31.0mm | TUV/UL/CB | Available | ZPL15SXX00WS-0SF |
| 15 Watt Series Single Output(For EV charger) | 52.4x27.2x24.0mm | TUV/UL/CB | Available | ZPL15SXX00WL-1SF |
| 20 Watt Series Single Output(For EV charger) | 52.4x27.2x31.0mm | TUV/UL/CB | Available | ZPL20SXX00WS-0SF |
| 20 Watt Series Single Output(For EV charger) | 52.4x27.2x24.0mm | TUV/UL/CB | Available | ZPL20SXX00WL-1SF |
| 30 Watt Series Single Output(For EV charger) | 69.4x39.0x24.0mm | TUV | Available | ZPI30SXX00WN-0SF |
