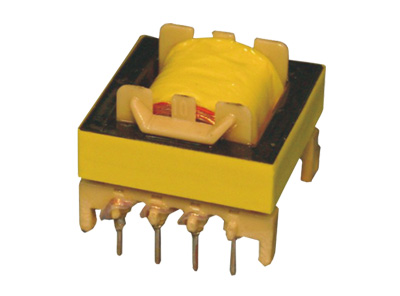

Assembled on automated production lines with UL recognized materials, Zettler’s range of high frequency switching transformers are reliable and cost effective solution for your power supply needs. Bobbin sizes range from E13 to ETD39, power range from 1W to 180W.
Key Benefits
Rapid prototyping
Easily customizable.
Standard bobbin and core sizing for quick turnaround
Vertical and horizontal layout options
Key Features
Universal 85-264VAC input range
4kV primary-secondary insulation
Conforms to EN 61558 and EN 60950
Creepage distance primary / secondary ≥ 6mm
Highly efficient, automated wire insulation process
100% production tested
Series | Datasheet |
---|---|
Design Reference Of Flyback Switching Transformer | Design Reference Of Flyback Switching Transformer |
Recommended Foot Poslition | Recommended Foot Poslition |
Series | Datasheet |
---|---|
5000m altitude | E22XXX-H and E32XXX-H |
E22 Series | XZM-E22299-H |
E32 Series | XZM-E32117-H |
